The slit lamp is an instrument consisting of a high-intensity light source that can be focused to shine a thin sheet of light into the eye. It is used in conjunction with a biomicroscope. The lamp facilitates an examination of the anterior segment, or frontal structures and posterior segment, of the human eye, which includes the eyelid, sclera, conjunctiva, iris, natural crystalline lens, and cornea. The binocular slit-lamp examination provides a stereoscopic magnified view of the eye structures in detail, enabling anatomical diagnoses to be made for a variety of eye conditions.

While a patient is seated in the examination chair, he rests his chin and forehead on a support to steady the head. Using the biomicroscope, the ophthalmologist or optometrist then proceeds to examine the patient's eye. A fine strip of paper, stained with fluorescein, a fluorescent dye, may be touched to the side of the eye; this stains the tear film on the surface of the eye to aid examination. The dye is naturally rinsed out of the eye by tears.

A subsequent test may involve placing drops in the eye in order to dilate the pupils. The drops take about 15 to 20 minutes to work, after which the examination is repeated, allowing the back of the eye to be examined. Patients will experience some light sensitivity for a few hours after this exam, and the dilating drops may also cause increased pressure in the eye, leading to nausea and pain. Patients who experience serious symptoms are advised to seek medical attention immediately.

Adults need no special preparation for the test; however children may need some preparation, depending on age, previous experiences, and level of trust.

The slit lamp exam may detect many diseases of the eye, including:

Cataract
Conjunctivitis
Corneal injury such as corneal ulcer or corneal swelling
Diabetic retinopathy
Fuchs' dystrophy
Keratoconus (Fleischer ring)
Macular degeneration
Presbyopia
Retinal detachment
Retinal vessel occlusion
Retinitis pigmentosa
Sjögren's syndrome
Uveitis
Wilson's disease (Kayser-Fleischer ring)
Retrieved from "http://en.wikipedia.org/wiki/Slit_lamp"

slitlamp
slit lamp examination
Source : http://en.wikipedia.org/wiki/Slit_lamp   Updated : 01--08--2010

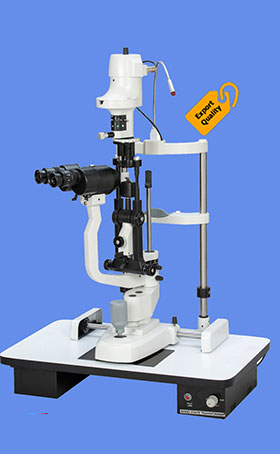

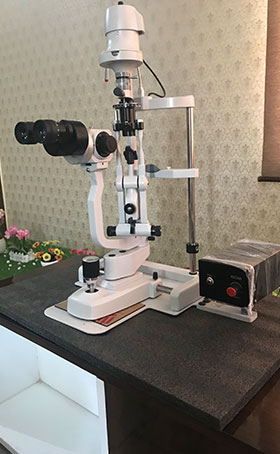

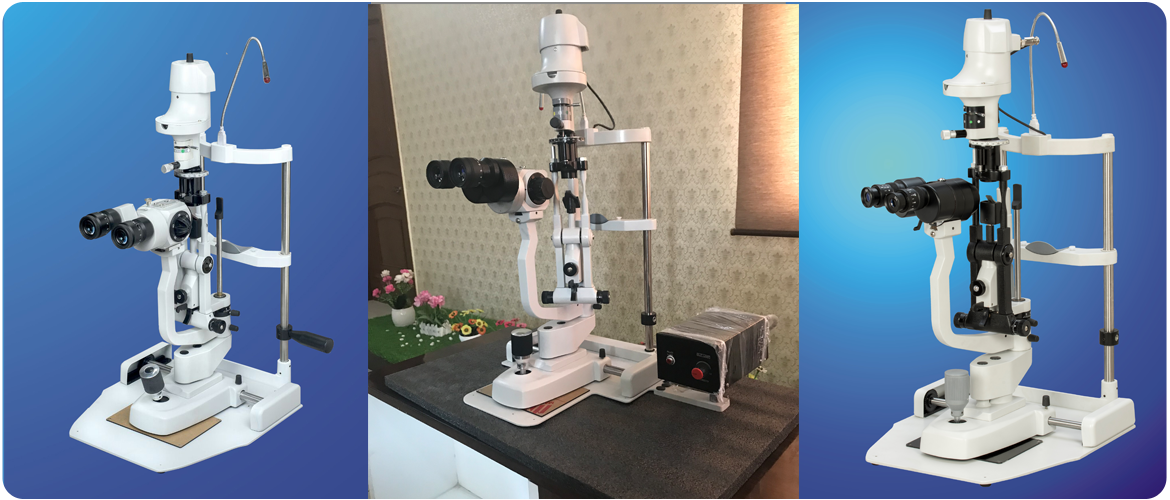

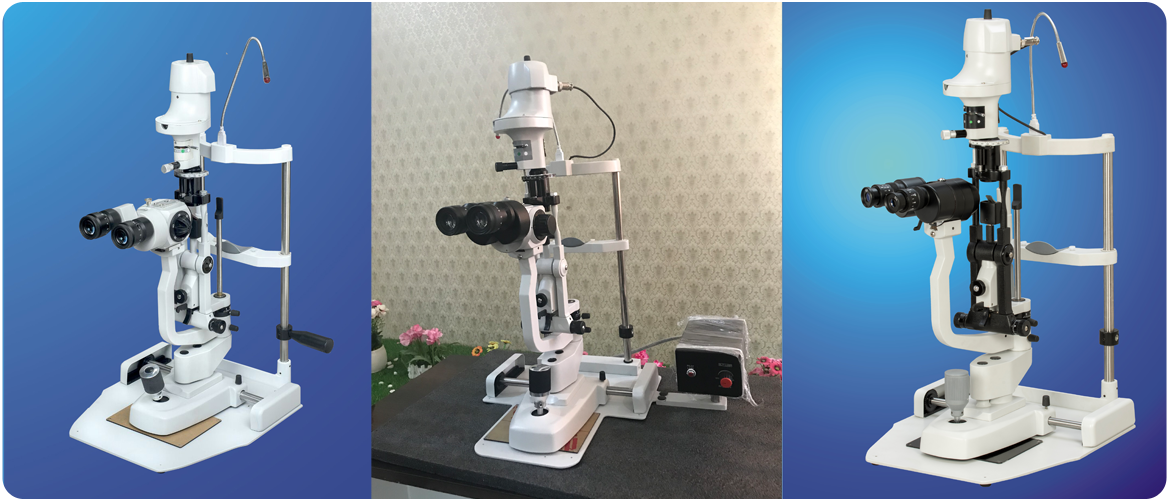

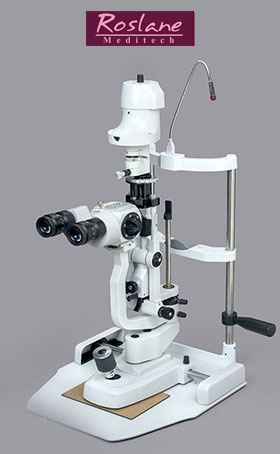

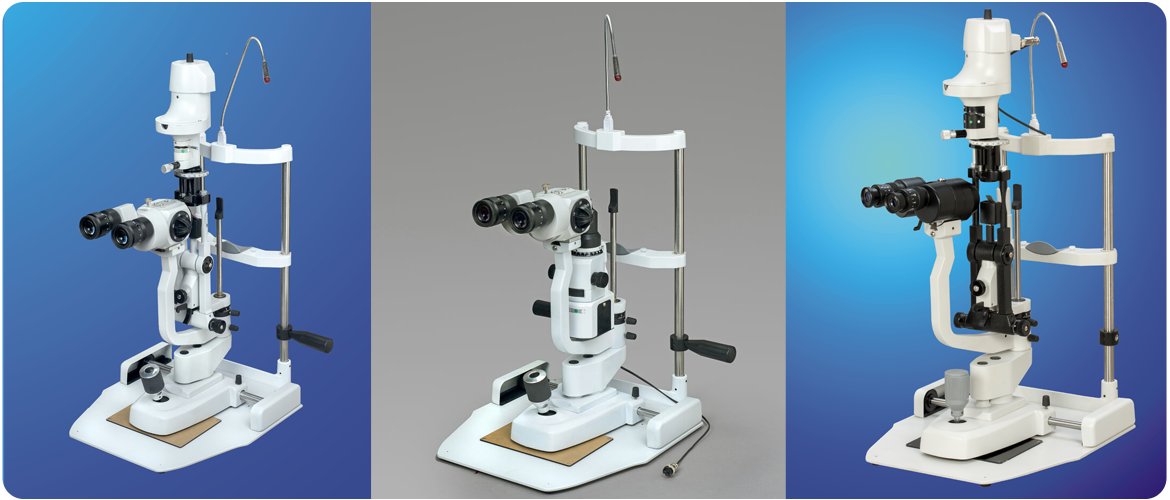

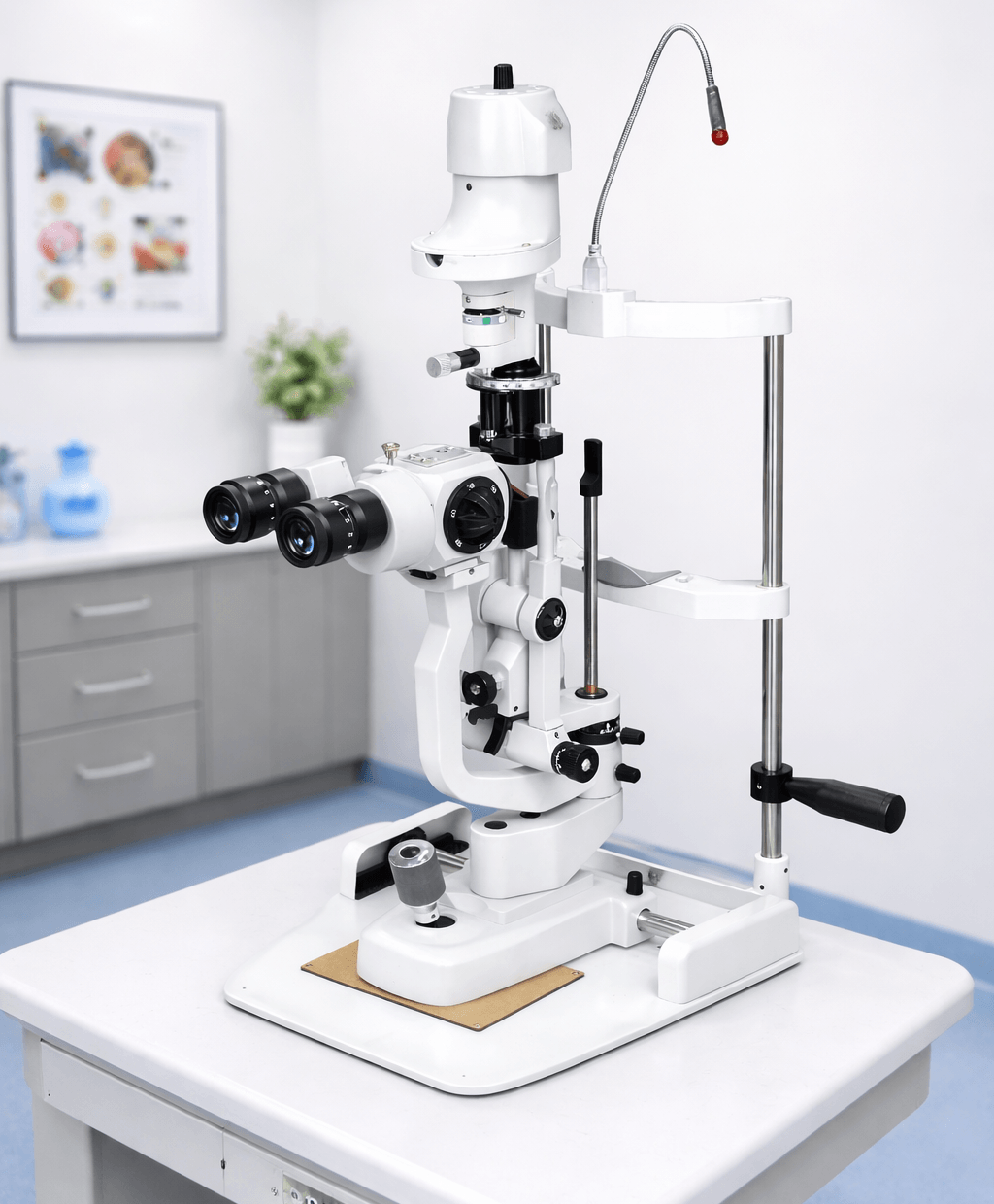

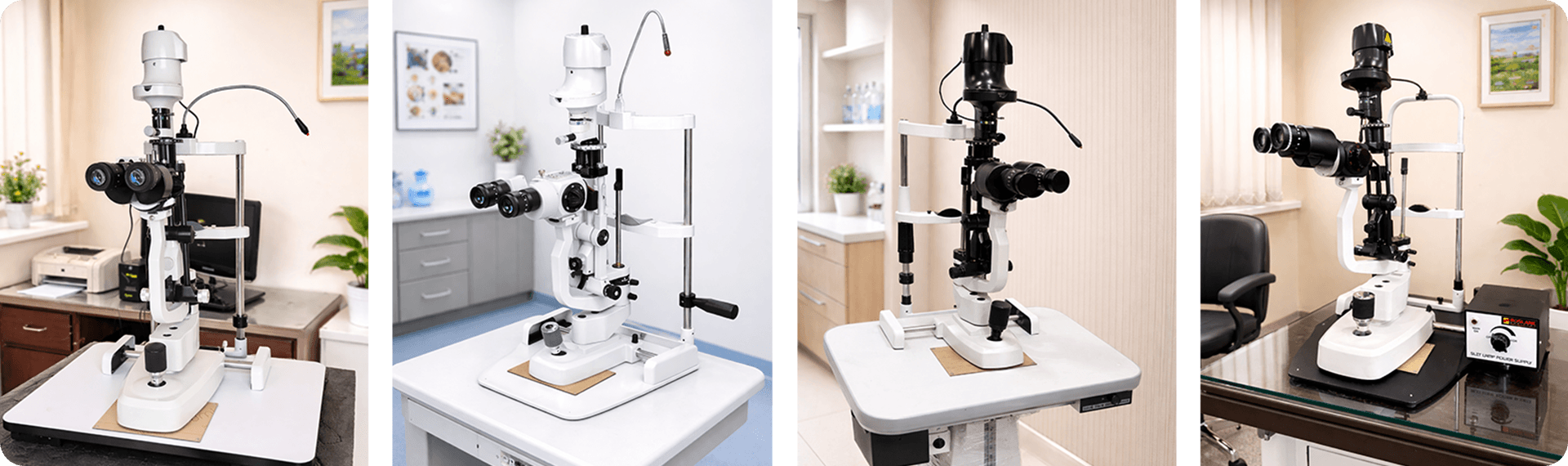

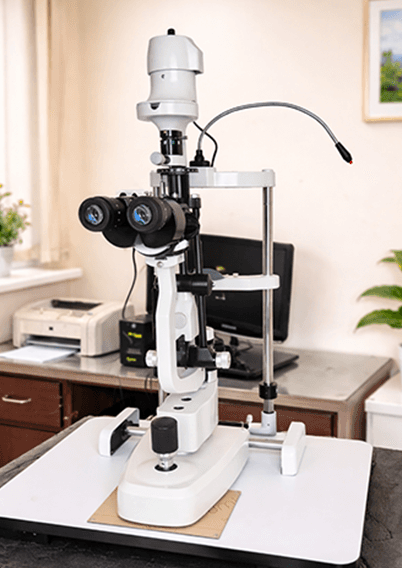

Slit Lamp for Eye (Ophthalmic) Examination

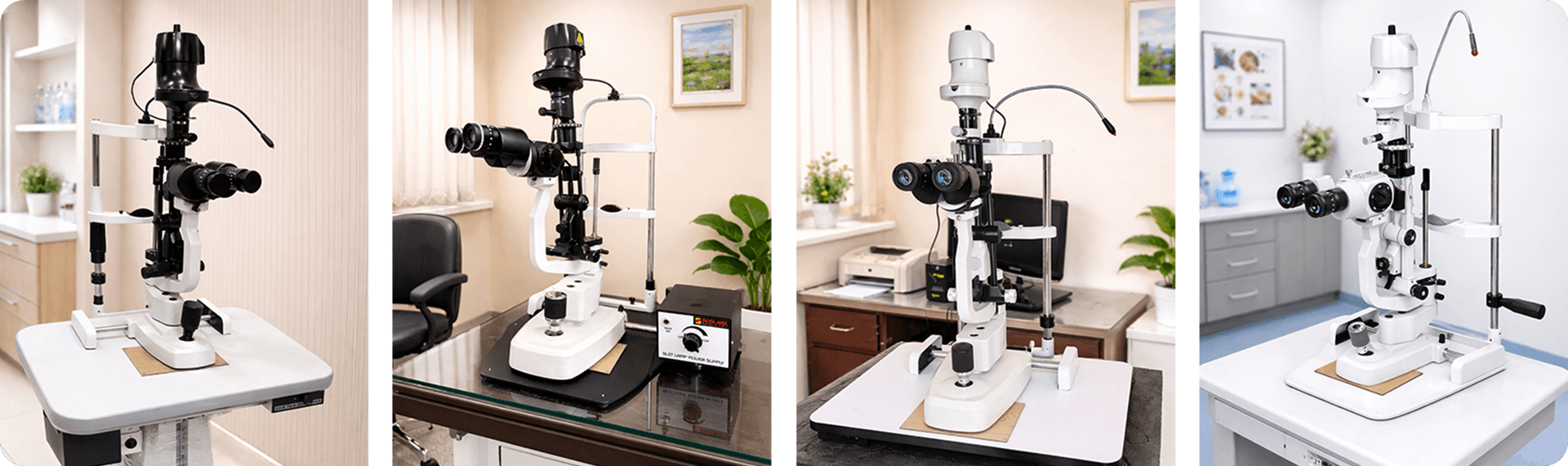

At Roslane Mewditech: We are dealing in Slit Lamps of various types, also known as Slit lamp Bio Microscopes and Slit lamp Bimicroscopes, available at most affordable prices for your ophthalmic examination needs. We offer various models of slit lamps as per individuals need. Pls Call + 91-94161-19569 for all your requirements of Slit Lamps & other Ophthalmic equipments such as Ophthalmic Microscopes,  Synoptophore, Keratometer, Lensmeter, Cam Vision Stimulator, Indirect Ophthalmoscope, Trial Lens Set, Trial Frame, Operating Light, Aspherical Lens, Gonioscope Lens, ENT Microscopes, Dental Microscopes, Neurosurgery Microscopes, Plastic surgery Microscopes, Portable Operating Microscope Surgical Operating Microscopes, Surgical Microscopes, ENT Operating Microscope, Dental Operating Microscope, Ophthalmic Instruments, Ophthalmic Equipments & General Surgery Microscopes.

Email : roslanemeditech@gmail.com

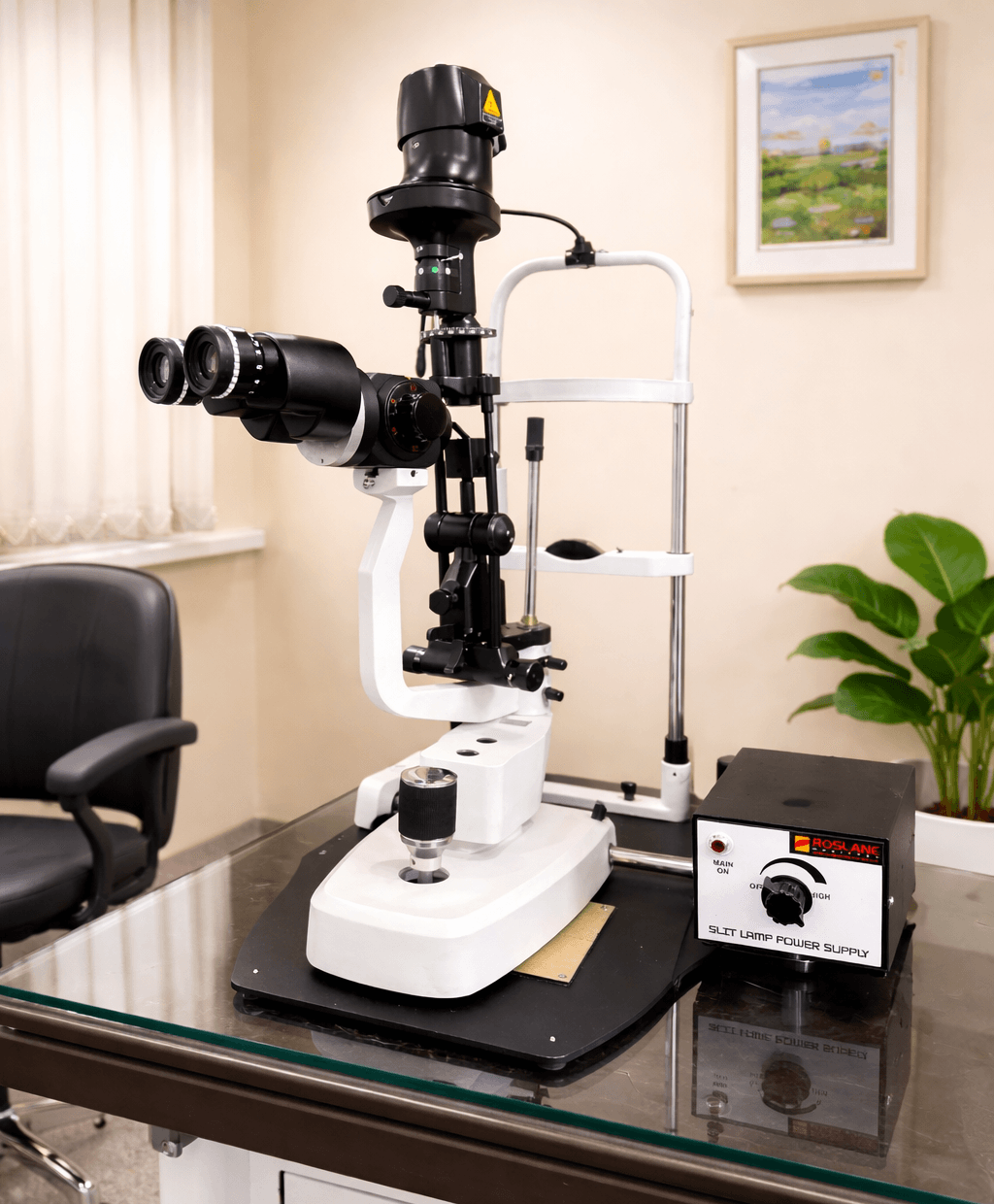

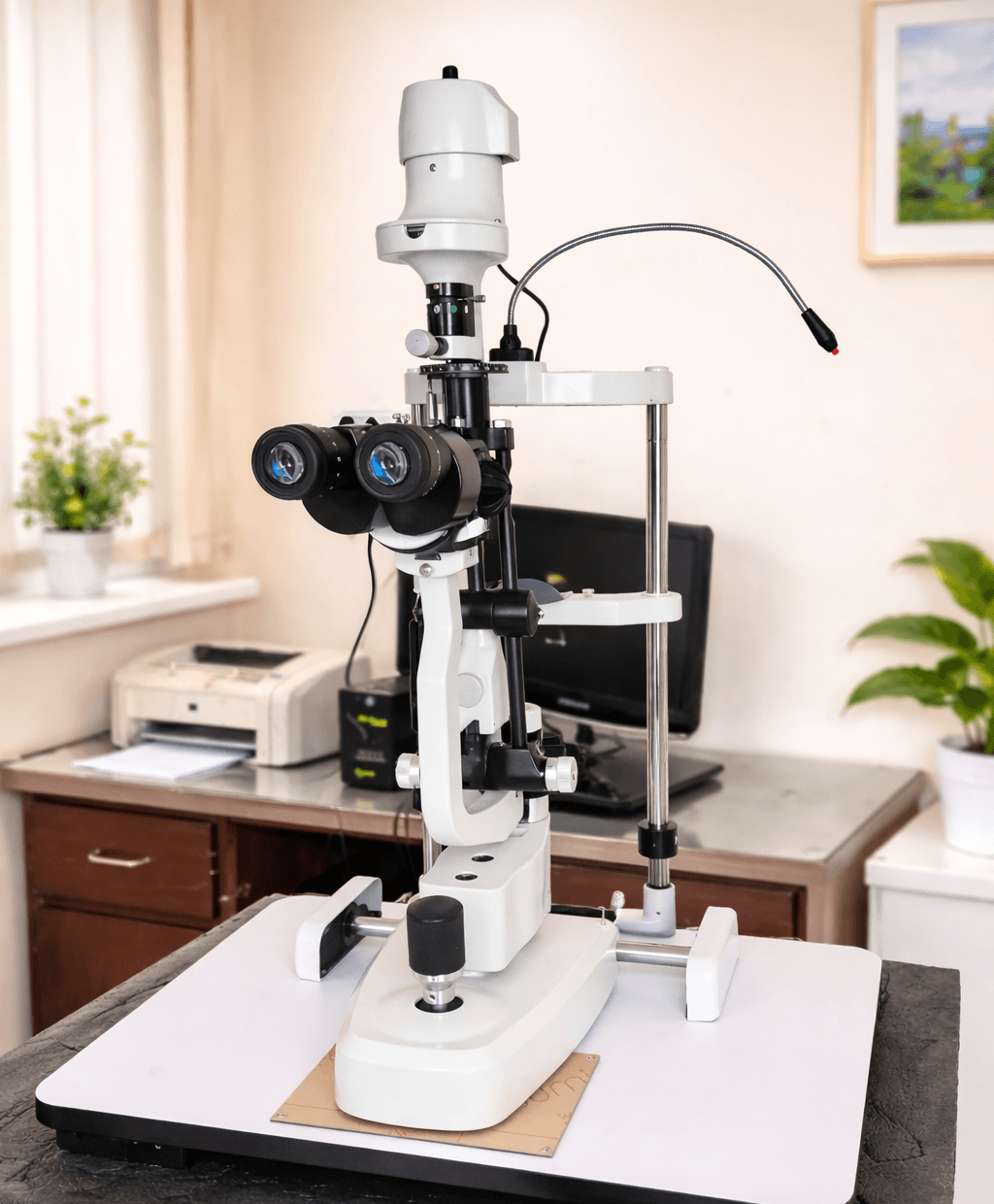

TECHNICAL SPECIFICATIONS Of Slit Lamp Model No : RSL-2
Binocular Microscope
Eye Pieces :10x, 15x
Objective :1x, 1.6x
Total Magnification :
10x, 16x and 24x

ILLUMINATION SECTION Slit Lamp Model No : RSL-2
Slit Image Rotation :0° to 180°
Tilting Illuminationupto :20°
Filter Disc. :Cobalt Filter, Green Filter,
Yellow Filter,Natural density and open aperture
Slit Disphragm Disc :Six apertures of 12, 9, 7, 3 and
0.2mm and wedge shaped
diaphragm for infinitely variable
slit lengths.
Halogen Lamp :6 Volt 20 Watts

STANDARD ACCESSORIES Slit Lamp Model No : RSL-2
· 15x Eyepieces
· Replacing Lamp one piece for illumination unit
· Replacing Mirror
· Hruby Lens
· Plastic breath shield
· Testing Rod
· Dust Cover
· Fuse

Electrical Power : AC 220V, 240V, 50/60Hz or 110 V
Power Consumption : 220VA or 110 V
